SMD Acoustics Type II LE Acrylic Plinth

The SMD Acoustics Type II LE Plus Plinth for the Garrard 301 or Garrard 401 is manufactured from an acrylic quartz material which is very attractive, durable and very dense so it possesses high mass. The plinth is supplied with the value engineered LE support pillars and Sorbothane® decoupling system.

The plinth is the most important component in getting the best possible sound from your Garrard. Get it wrong and the Garrard is just another old turntable, get it right and you have a world beater regardless of price.

The problem for the plinth designer in the past has been whether to select mass or damping to kill resonance, the SMD plinth employs both methods.  Using sound mechanical and acoustic engineering principles they have designed and developed a range of plinths to extract the best from your Garrard. All the plinths in the range use a skeletal type damped plinth. The mass of the plinth depends on the model selected. Four different materials are used across the range, MDF, Acrylic Quartz, Slate and Granite.

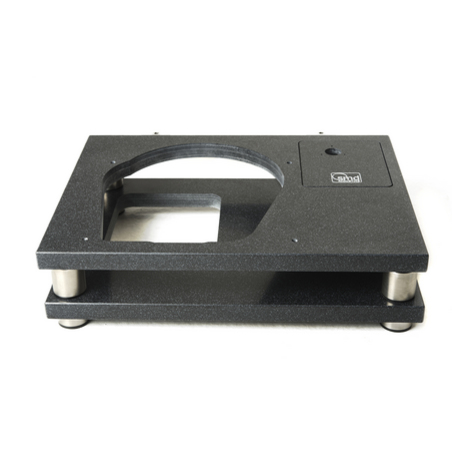

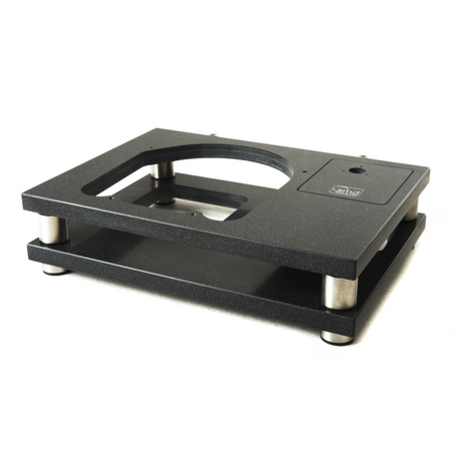

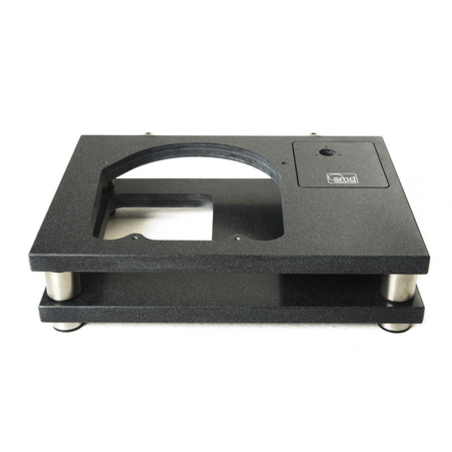

Pictured above: SMD Acoustics Type II LE Plus Plinth for the Garrard 401

All the SMD plinths have an incredibly low noise floor and a very solid bass delivery and extension, the separation between performers is amazing…. almost holographic and you feel as though you can walk between them. The decoupled top plate isolates your stylus from external room bound resonances and the high mass top board effectively acts a sink, its sheer mass dampens motor noise. The plinth is designed to add nothing to your sound, no coloration but it is designed to remove the unwanted vibrations that would impair the sound of your deck. Being an open skeletal design we have none of the problems associated with internal vibrations and resonances that can build up in box type plinths and the heat from the motor unit is effectively transferred away as air is free to circulate around the unit.

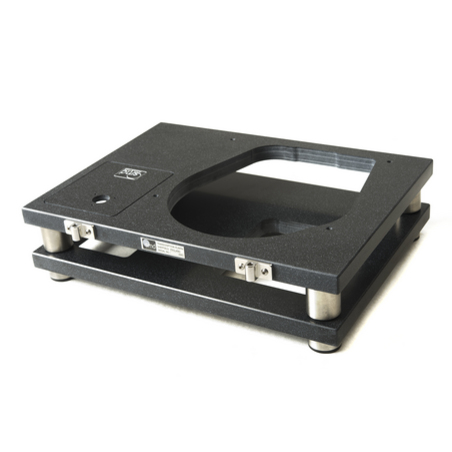

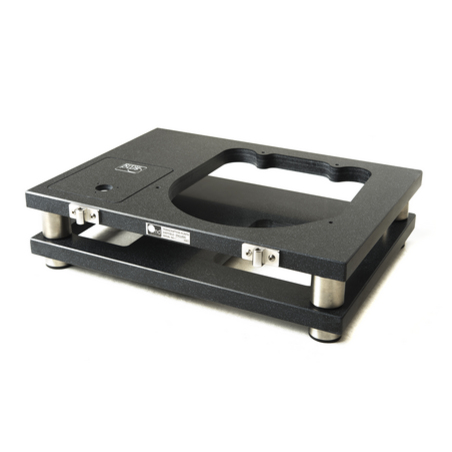

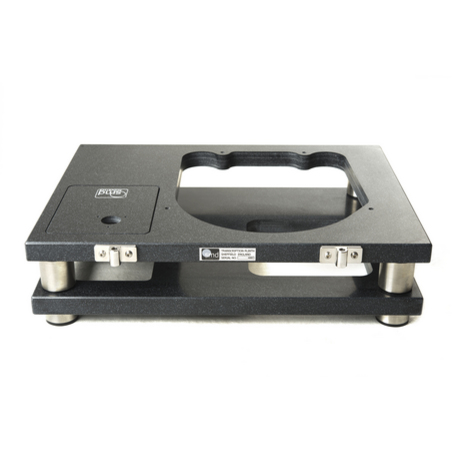

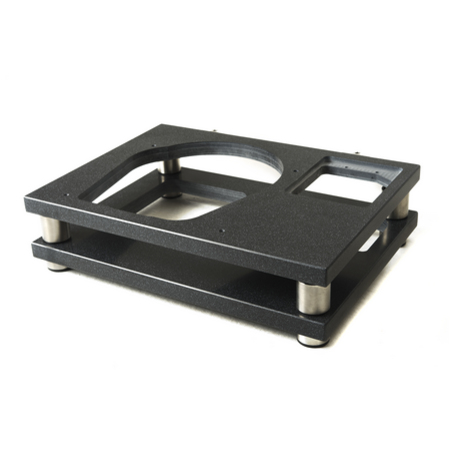

Pictured above: SMD Acoustics Type II LE Plus Plinth for the Garrard 301

We suggest you avoid single piece box type cavity or multilayered ply veneered plinths as can be seen in the following photograph as these act as an amplifier (a little like the body of an acoustic guitar) by catching stray vibrations from air borne vibrations from the loudspeakers, foot fall etc. These are transmitted back into your cartridge and cause a muddy indistinct sound. There is a reason that respected turntable manufacturers such as SME, Michell, TW-acustic etc. use skeletal plinths...because they sound better than box plinths. The plinth pictured directly below is on demonstration at Peak HiFi for comparison to the SMD plinths.

Pictured above: Traditional single piece box plinth mulit layered ply veneered.

A major advantage of high mass is its ability to nullify motor vibrations and If you had a one piece solid plinth with no damping at all then slate would be one of the best material choices as it is high mass and the multi layers tend to be naturally damping. However the SMD plinths are high mass and very effectively damped, if you want to see the effect of good damping remove the platter mat off your 301 and flick the platter, it rings like a bell. Now try it with the mat in place, there is virtually no ring.  In our listening tests we have found granite to be the superior performer sonically with slate a close second and then acrylic quartz followed by MDF.

Sy Chen's Type II LE Plus with a Garrard 301 & SME M2-12R supplied by Peak HiFi.

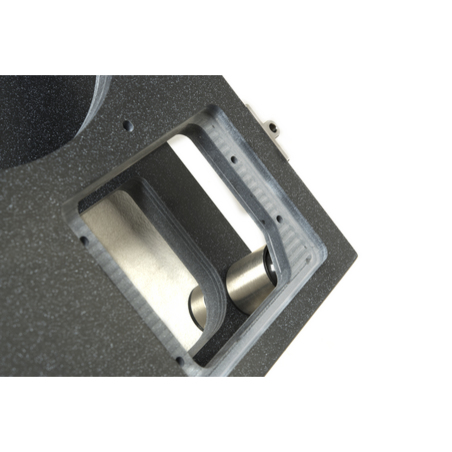

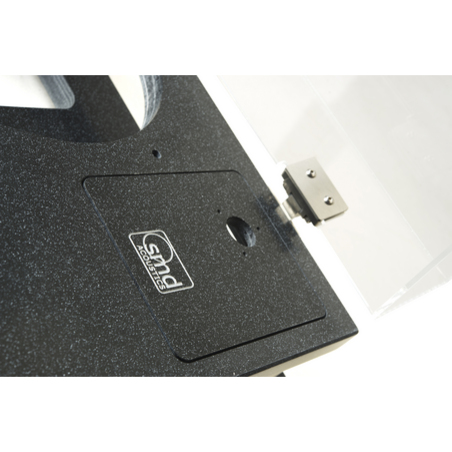

The Type II LE Plus Model features an arm boards that is CNC machined for absolute accuracy from Acrylic Quartz. In our experience we believe that it is more important for the arm to always be on the same horizontal plane as the platter than it is to try and isolate the arm from the board the motor unit is attached to, it is not good for your arm to be floating around independent of the platter and for that reason we always fix the arm board to the top plate.

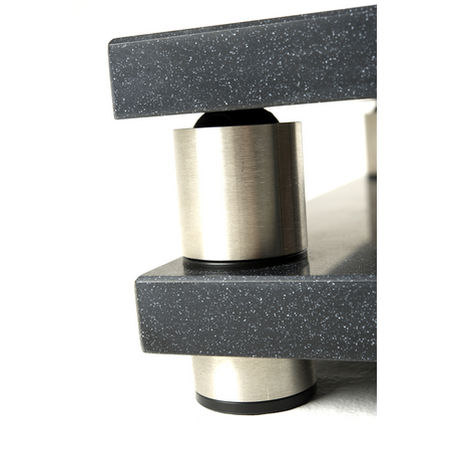

The LE Pillar when assembled looks virtually the same as the premium pillar but utilises Nylatron body with a stainless sheath as opposed to solid grade 304 stainless as per the premium pillars.

Pictured above: LE Support Pillar

Specification

Plinth Material: Acrylic Quartz

Support Pillars: LE support pillars with Sorbothane® sphere decoupling system

Arm Board: Acrylic Quartz CNC machined to 12mm thick.

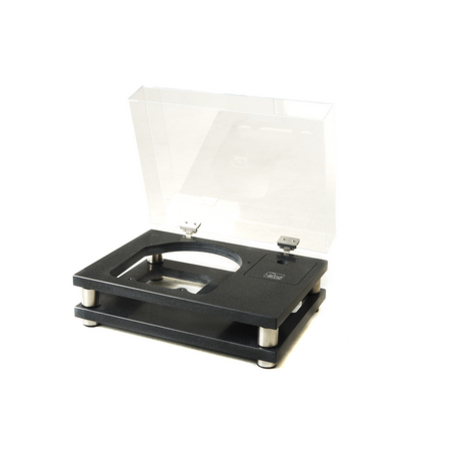

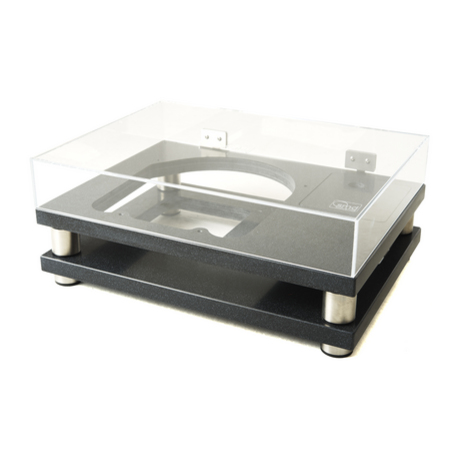

Dust Cover: Optional manufactured from 5mm thick acrylic with router cut logo.

Hinges: Optional bespoke 304 grade stainless steel friction hinges.

Dimensions: 580mm x 430mm x 145mm (L x D x H)

Weight Net: 28kgs

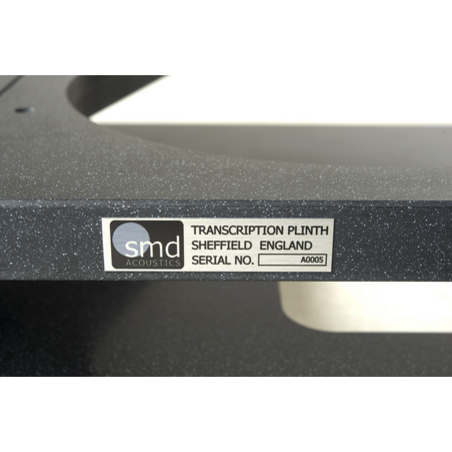

SMD plinths are made in England and endorsed and used by Ray Clarke of Classic HiFi.
