Ortofon MCX20

MC X Series

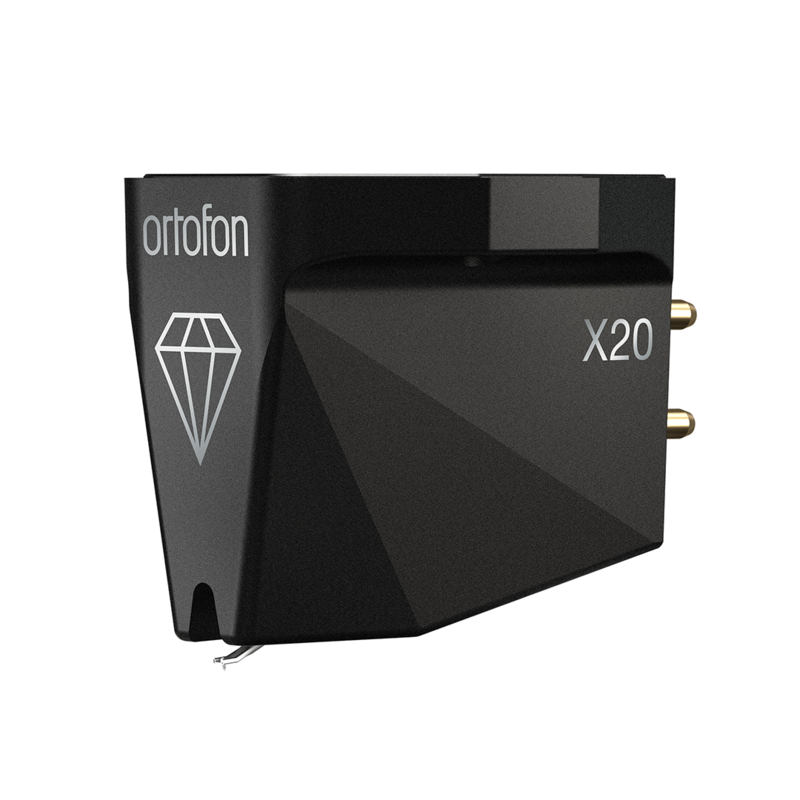

MC X20

Go deeper into your music with the MC X20. Featuring a nude elliptical diamond stylus, it reveals greater depth and definition, uncovering the full character of each track. Rediscover your favourite records with fresh excitement and vivid precision.

•  Smooth sound reproduction with excellent rhythmic timing
• Moving Coil cartridge design
• Overhead mounting cartridge for installing into a headshell
• Nude Elliptical diamond stylus profile

Specifications

Output Voltage: 0.4 mV

Channel Balance (@ 1000Hz): 0.5 dB

Channel Separation (@ 1000Hz): 25 dB

Frequency Response: ± 1 dB

Compliance, Dynamic, Lateral: 15 μm

Stylus Type: Nude Elliptical

Stylus Tip Radius (r/R): 8 / 18 μm

Recommended Tracking Force: 2.0 g

Internal Impedance: 6 Ω

Cantilever Material: Aluminium Tube

Coil Wire Material: High-Purity Silver

Recommended Load Impedance: > 50 Ω

Cartridge Weight: 8.6 g
