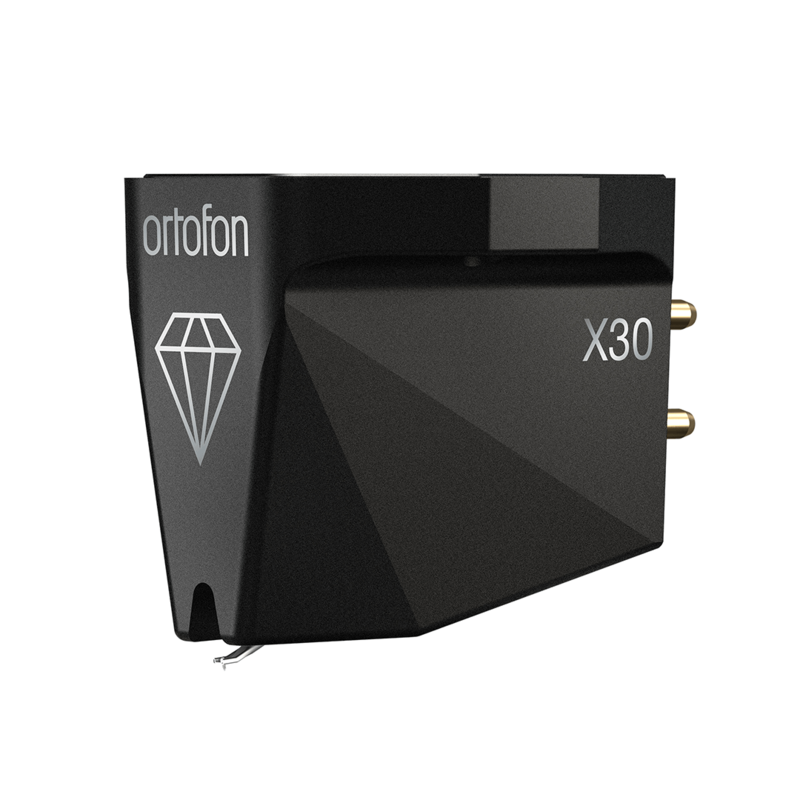

Ortofon MCX30

MC X Series

MC X30

Push your listening experience further with with MC X30. Featuring a nude fine line diamond stylus, it offers extraordinary accuracy and resolution, rendering your music and every track with breathtaking detail and dynamic range.

• Accurate sound reproduction, delivered with greater power and space
• Overhead mounting cartridge for installing into a headshell
• Moving Coil cartridge design
• Nude Fine-Line diamond stylus

Specifications

Output Voltage: 0.4 mV

Channel Balance (@ 1000Hz): 0.5 dB

Channel Separation (@ 1000Hz): 26 dB

Frequency Response: ± 1 dB

Compliance, Dynamic, Lateral: 15 μm

Stylus Type: Nude Fine Line

Stylus Tip Radius (r/R): 8 / 40 μm

Recommended Tracking Force: 2.0 g

Internal Impedance: 6 Ω

Cantilever Material: Aluminium Tube

Coil Wire Material: High-Purity Silver

Recommended Load Impedance: > 50 Ω

Cartridge Weight: 8.6 g
