Ruark RS1 Subwoofer

Ruark RS1 Subwoofer

Bass is the foundation of music. It is the element that makes you feel the rhythm, the groove, and the emotion of a song. Bass can make your heart beat faster, your body move, and your mood change. Whether you listen to rock, pop, hip hop, jazz, or classical music, clean and extended bass adds a new dimension to musical enjoyment and that’s why we’ve developed RS1.

• Deep, controlled and musical sound
• Natural extended bass
• Elegant design
• 100 watt Class D amplifier
• Auto-on/standby feature
• Compatible with R3S, MR1 and R410

Features at a glance

Frequency response 25Hz – 200Hz

Cabinet Tuned passive radiator enclosure

Drivers 170mm treated fibre long-throw active driver and 170mm passive radiator

Amplifier 100W RMS Class D with soft clipping filter

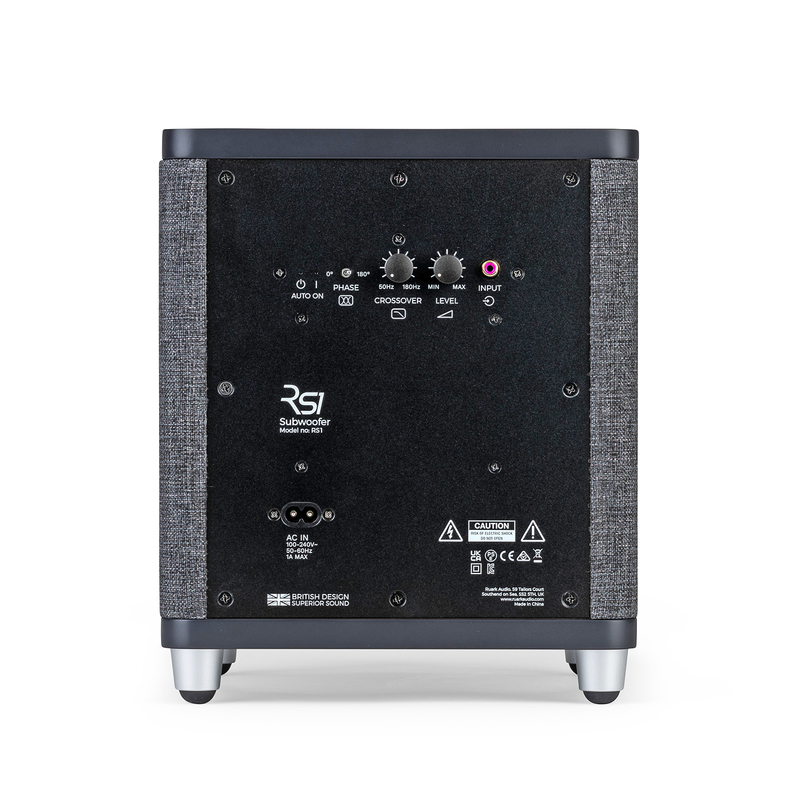

Controls Adjustable crossover 50–180Hz, input/volume level control and 180 degree phase switch

Auto on Automatically turns on and sleeps after 15 minutes when no signal is detected

Input Sub-input via Mono RCA input (up to 2.3Vrms)

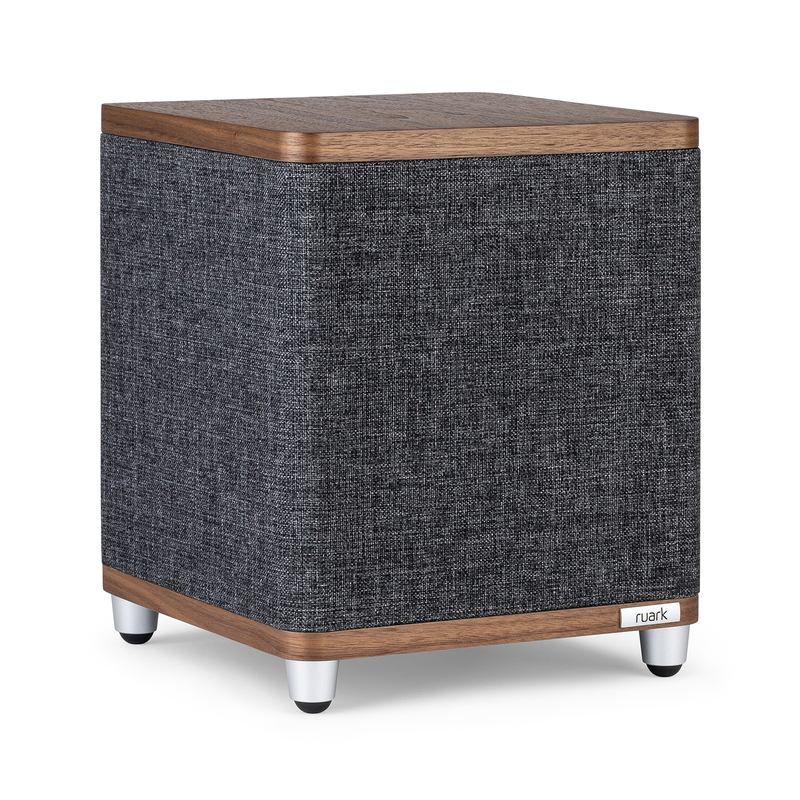

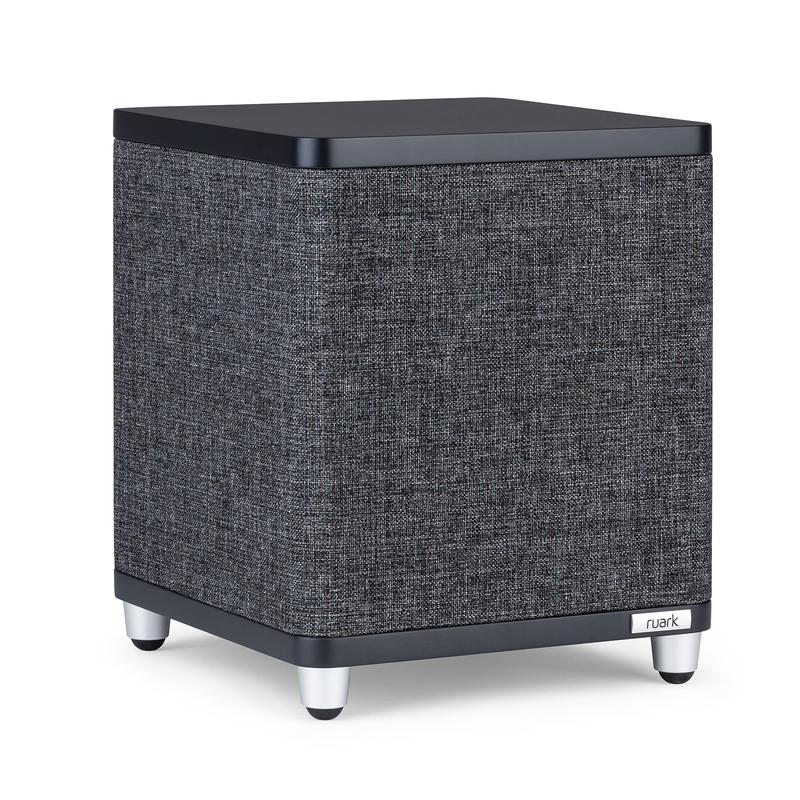

Finishes Slate Grey cabinet cloth with Rich Walnut or Satin Charcoal lacquer top and bottom panels

Product compatibility RS1 is compatible with our MR1, R3S and R410 models or any other active speaker or amplifier with subwoofer or pre-out phono connectors

Box contains RS1 subwoofer, mains lead, 1.5m RCA connector lead and quick start guide

Power consumption 0.5W standby, 2.0W idle

AC power input 100-240V, 50-60Hz

Product dimensions H300 × W250 × D265mm (inc. feet and controls)

Product weight 6.7kg
