Hana SL/SH/SLM Mk2

Description

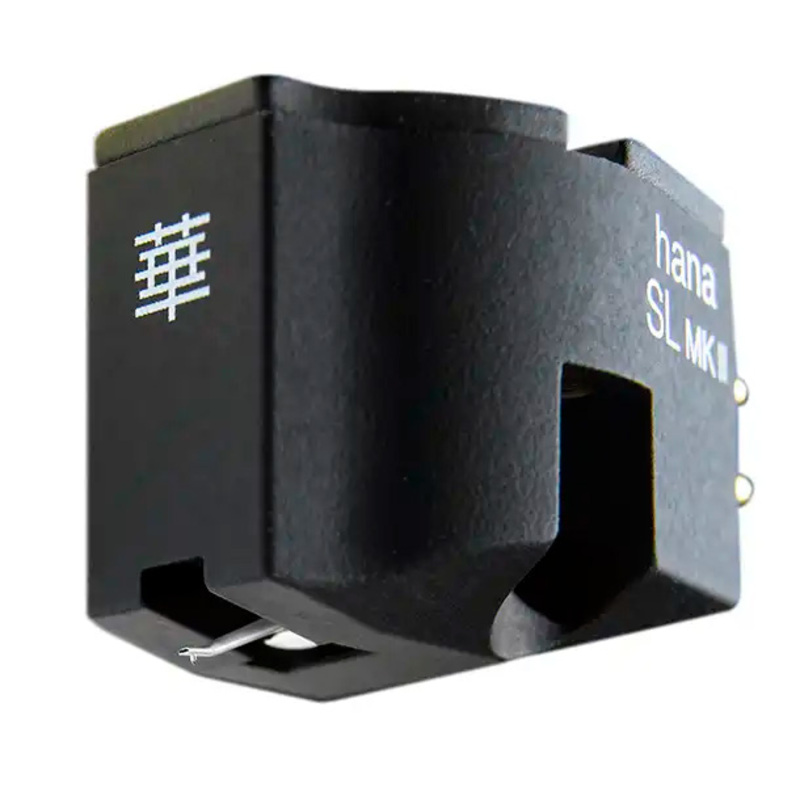

Hana S MkII Series Moving Coil Cartridges

The Hana S MkII range brings together three cartridges with a choice of low-output stereo, high-output stereo or dedicated mono playback. Select SL MkII, SH MkII or SLM MkII from the dropdown menu.

Each features a nude Shibata diamond stylus and tapered aluminium cantilever, designed to trace fine groove detail. An Alnico magnet, cryogenically treated components and a damped black body with a brass top cap complete the construction. Threaded mounting holes simplify installation.

Choose your model

SL MkII: low-output stereo cartridge for a suitable MC phono stage or compatible step-up arrangement.
SH MkII: high-output stereo cartridge for an MM phono input.
SLM MkII: low-output mono cartridge for mono vinyl, requiring suitable MC amplification.

Specifications

Feature	SL MkII	SH MkII	SLM MkII
Type	Low-output stereo MC	High-output stereo MC	Low-output mono MC
Stylus	Nude diamond Shibata	Nude diamond Shibata	Nude diamond Shibata
Cantilever	Tapered aluminium	Tapered aluminium	Tapered aluminium
Magnet	Alnico	Alnico	Alnico
Output at 1 kHz	0.4 mV	2 mV	0.4 mV
Output balance at 1 kHz	Less than 1.5 dB	Less than 1.5 dB	Not specified
Tracking force	2 g	2 g	2 g
Trackability	70 µm at 2 g	70 µm at 2 g	70 µm at 2 g
Dynamic compliance	10 × 10⁻⁶ cm/dyne	10 × 10⁻⁶ cm/dyne	10 × 10⁻⁶ cm/dyne
Channel separation at 1 kHz	28 dB	28 dB	Not applicable to mono playback
Frequency response	15 Hz–32 kHz	15 Hz–32 kHz	15 Hz–32 kHz
Internal impedance	8 Ω	130 Ω	23 Ω
Suggested load impedance	80 Ω or higher	47 kΩ	230 Ω or higher
Weight	8.6 g	8.6 g	8.6 g
Finish	Black	Black	Black
Guarantee	Two years	Two years	Two years
