New
Hana Umami Red
- £3649.00

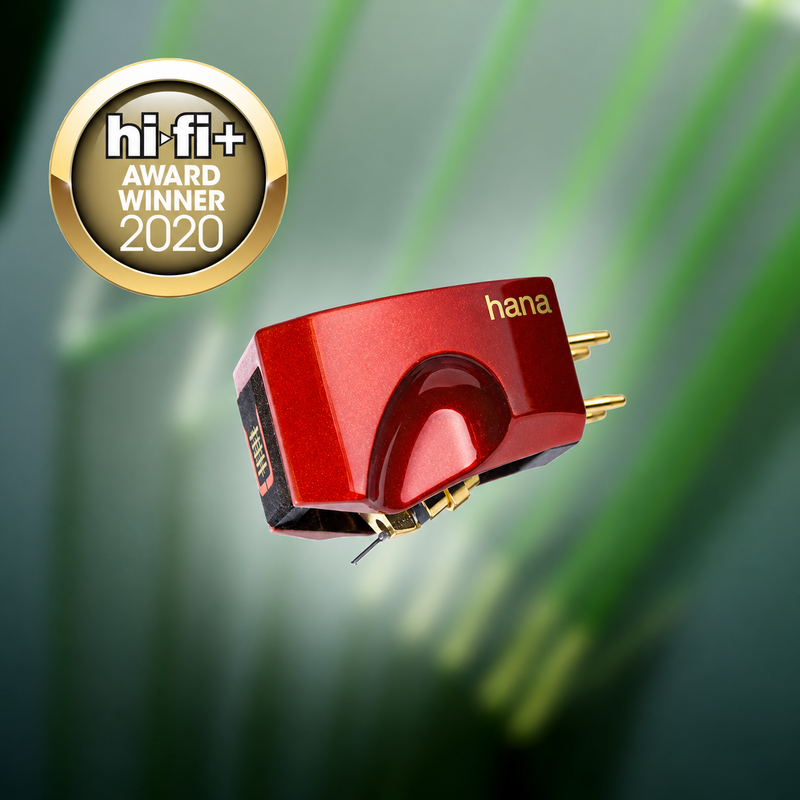

Hana Umami Red Moving Coil Cartridge
Hand-built in Japan by Excel Sound, the Hana Umami Red combines precision cartridge engineering with a distinctive red Urushi lacquer finish.
Its nude Microline diamond stylus is mounted on a solid boron cantilever to trace fine groove information. The cryogenically treated generator uses a samarium-cobalt magnet, a square armature and hand-wound, high-purity copper coils.
The Auricle™ body is machined from A7075 Duralumin and incorporates an ebony wood inlay for resonance damping. Threaded mounting holes simplify installation, while the supplied stylus guard protects the cantilever when not in use.
Its 0.4 mV output requires a suitable MC phono stage or compatible step-up arrangement.
Specifications
|
Feature |
Specification |
|
Type |
Low-output stereo moving coil |
|
Stylus |
Nude diamond Microline |
|
Cantilever |
Solid boron |
|
Body material |
A7075 Duralumin with ebony wood inlay |
|
Finish |
Gloss red Urushi lacquer |
|
Magnet |
Samarium-cobalt |
|
Armature |
Square permalloy |
|
Coil wire |
High-purity copper |
|
Terminal pins |
24K gold-plated |
|
Cryogenic treatment |
Yes |
|
Output at 1 kHz |
0.4 mV |
|
Internal impedance at 1 kHz |
6 Ω |
|
Recommended load |
Greater than 60 Ω |
|
Frequency response |
15 Hz–50 kHz |
|
Output balance at 1 kHz |
0.5 dB |
|
Channel separation at 1 kHz |
Greater than 30 dB |
|
Tracking force |
2 g |
|
Trackability |
70 µm at 2 g |
|
Dynamic compliance at 100 Hz |
10 × 10⁻⁶ cm/dyne |
|
Weight |
10.5 g |
|
Guarantee |
Two years |
Contact Peak HiFi for advice on matching the Umami Red to your tonearm and phono stage.
