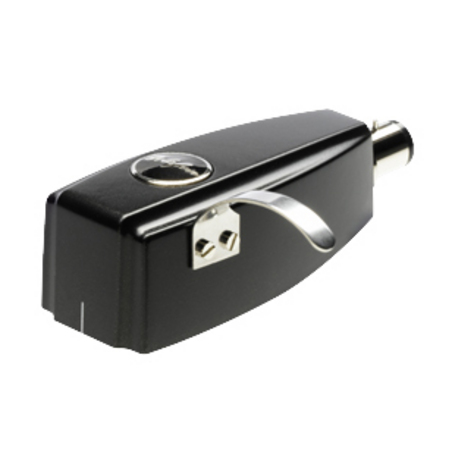

Ortofon SPU Mono CG 65 DI MkII
The Mono CG 65 DI MKII is an SPU-style Moving Coil (MC) cartridge with a spherical stylus profile, for the playback of early 65µm mono and 78rpm recordings.
The CG 65 DI MKII provides an authentic method of playing back these early recordings with a remarkable level of sonic accuracy, regardless of the materials used to manufacture these discs.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers.
This item is special order only and we can supply in approximately 3 weeks from order placement.
Output voltage at 1000 Hz, 5cm/sec. 1,5 mV
Frequency range at - 3dB 20-18.000 Hz
Frequency response 20-15.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force *) > 60 µm
Compliance, dynamic, lateral
Stylus type Spherical
Stylus tip radius R 65 µm
Tracking force range 4,0-5,0 g (40-50 mN)
Tracking force, recommended 4,5 g (45 mN)
Tracking angle 20°
Internal impedance, DC resistance 6 Ohm
Recommended load impedance > 100 Ohm
Cartridge body material Grinded wood
Coilwire material High Purity Copper (OFC)
Cartridge colour Black
Cartridge weight 33 g
*) Typical value
